Elitech LD-200 Rechargeable Heated Diode Leak Detector Air Condition & Automotive Tools

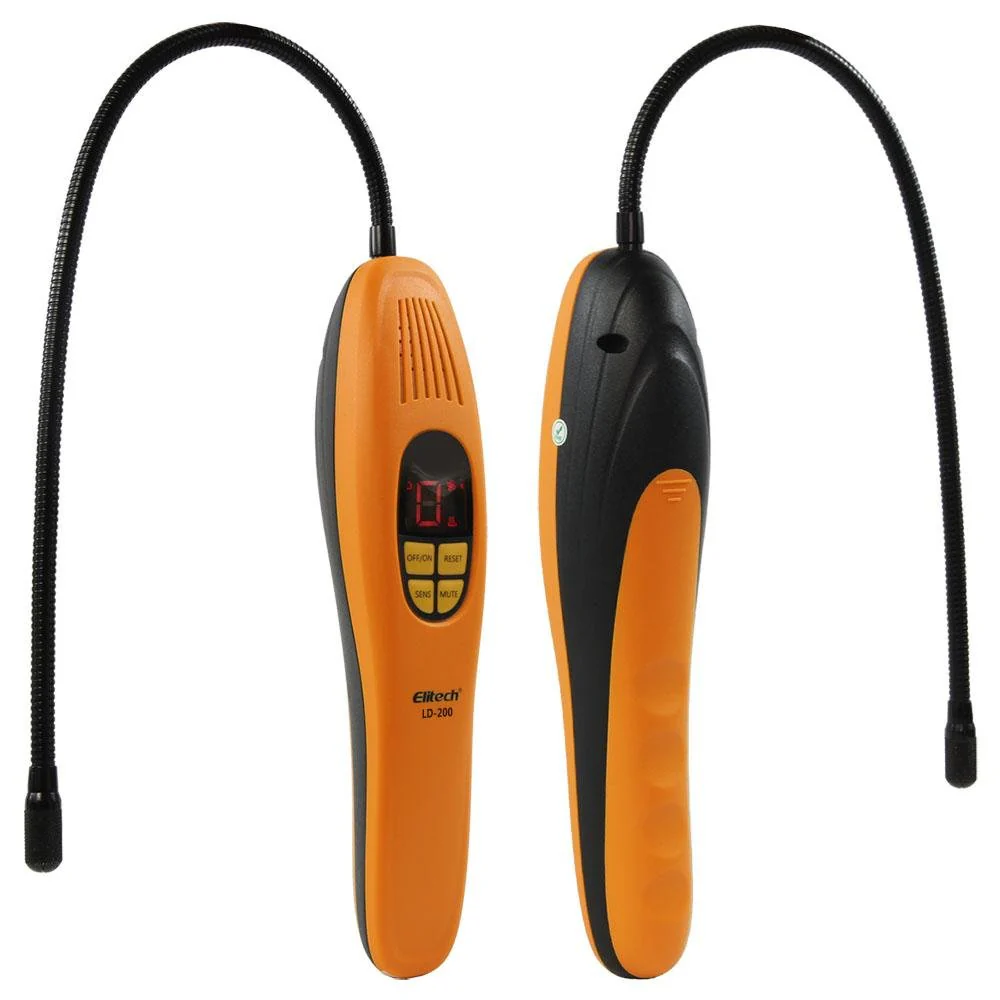

Elitech LD-200 - Refrigerant Leak Detector
Refrigerant Leakage
Refrigerants are the backbones of a refrigeration system, their main purpose is to remove the heat from the air. When there is refrigerant leakage, the air conditioner runs longer to compensate, consumes more energy, and the component may get damaged. Large leakages can also lead to environmental hazards.
Perfect Fit
The Elitech LD-200 is designed to fit on your hand allowing you have a firm grip when detecting the leakage. The most unachievable places will be easily accessed with the LD-200
Even the small leaks
The LD-200 can detect leaks as small as 3g/yr with a very fast response (<3s) and all types of CFCs, HCFCs, HFCs, CH refrigerants. A bright backlight LCD screen and customizable alarm. Everything you need to find all leakages. This is achieved through the employment of a high sensitive heated diode sensor combined with a sophisticated microprocessor-controlled circuit.
Features:
- Brand new appearance, unique shape; LED displays detailed information, such as a battery, sensitivity, easy to operate;
- The imported sensor of heated diode nanotechnology and stabilivolt chip of high accuracy collect more than 5000 signals per seconds;
- Weighing recursive average filtering method; more accurate and stable;
- Wider detection range, besides common halogen refrigerants, new refrigerants, such as R600A, R410A, etc. The accuracy can reach 3g/y;
- Sensitivity: 7 level adjustable(LD-200);

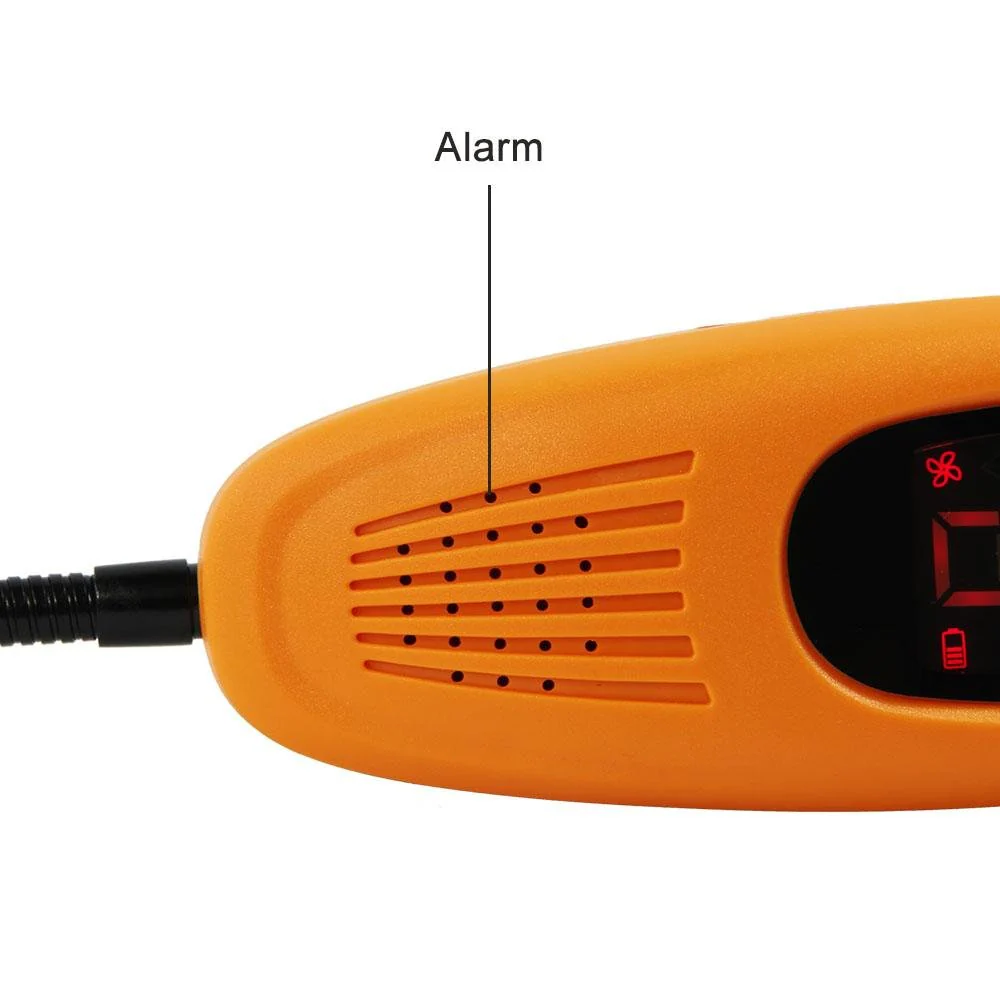

- Battery display, low battery alarm function;
- Conform to CE standard and SAEJ1627 standard;

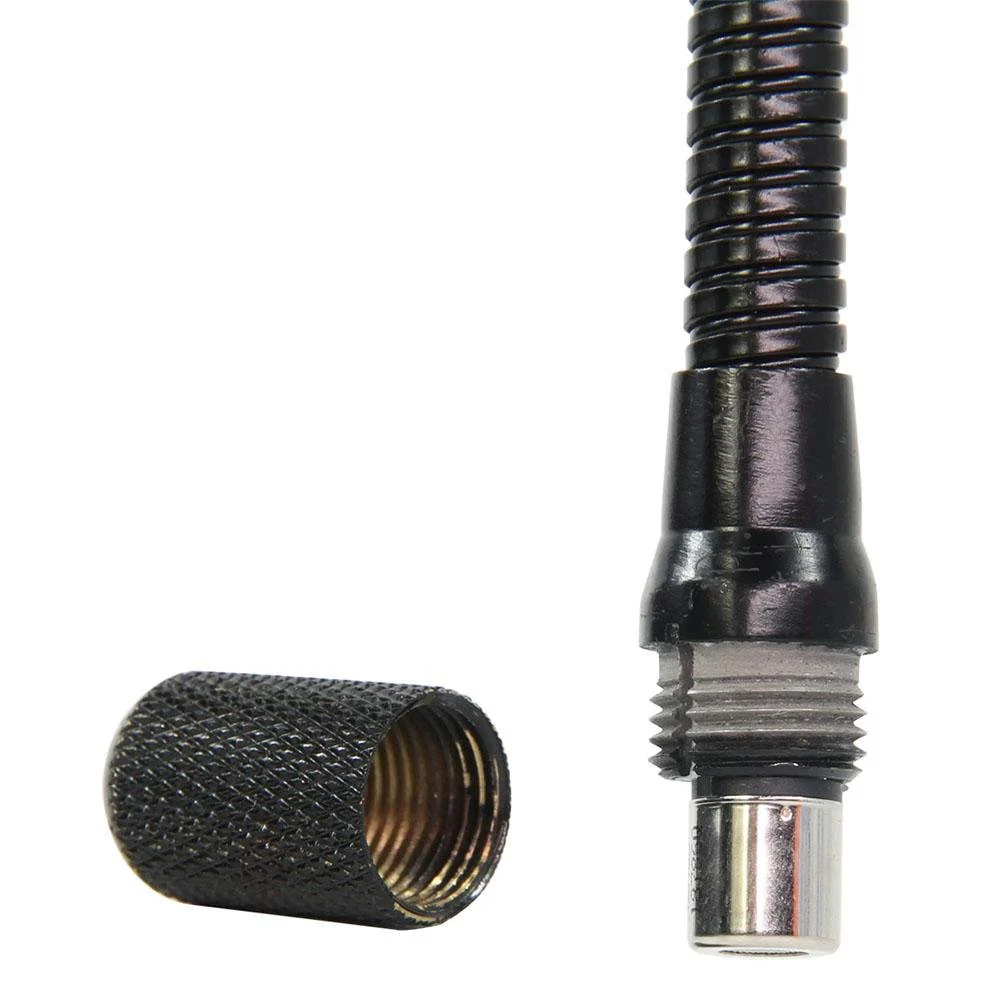

- Replaceable probe
- Rechargeable (While LD-100 needs to be powered by batteries)
- Service 1-year warranty. 30 days free & easy return
Specifications:
| Sensor: | Heated Diode sensor |
| Minimum sensitivity: | 3g/yr |
| Response time: | <3s |
| Warm-up time: | <60s |
| Operating temperature: | 0℃~50℃; |
| Operating humidity: | <80%RH (non-condensing) |
| User Manual: | |
| Elitech HVAC Tools Catalog Brochure: |
Refrigerants
|
The detector responds to all halogenated refrigerants (including Chlorine and Fluorine), which include but not limited to: CFCs e.g. R12, R11, R500, R503 etc. HCFCs e.g. R22, R123, R124, R502 etc. HFCs e.g. R134a, R404a, R410a, R407C etc. CH R600a |

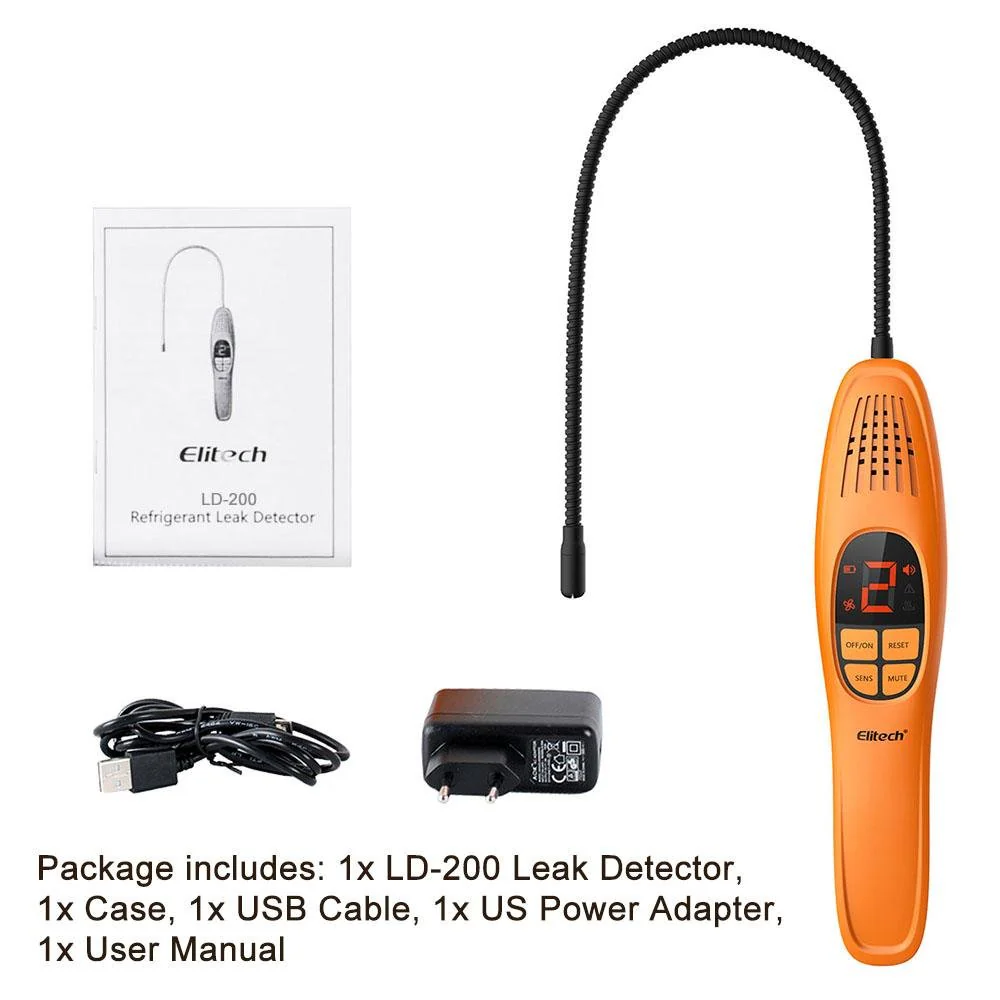

What's Included
| 1 x Elitech LD-200 |
| 1 x USB cable |
| 1 x Power Adapter |
| 1 x Manual |
[Custom Product Tab]
[/Custom Product Tab]
| Sensor Type | Battery included | Battery Required | Sensor Life | Probe Length | Rechargeable | Sensing Tip |
|---|
 |
WJL-6000 | Corona | NO | 4 AAA | ≥ 24 hours | 7.87 inch | NO | 1 |
 |
CLD-100 | Corona | NO | 4 AAA | ≥ 24 hours | 7.87 inch | NO | 1 |
 |
HLD-100+ | Corona | NO | 2 C | ≥ 24 hours | 13.98 inch | NO | 2 |
 |
HLD-200 | Corona | NO | 2 AA | ≥ 24 hours | 12.01 inch | NO | 2 |
 |
LD-200 | Heated Diode | YES | Li-1800mA/h | ≥ 500 hours | 14.37 inch | YES | 1 |
 |
ILD-200 | Infrared | YES | Li-3000mA/h | ≥ 10 years | 14.37 inch | YES | 1 |
| Sensor Type | Battery included | Battery Required | Sensor Life | Probe Length | Rechargeable | Sensing Tip |
|---|
|
WJL-6000 | Corona | NO | 4 AAA | ≥ 24 hours | 7.87 inch | NO | 1 |
|
CLD-100 | Corona | NO | 4 AAA | ≥ 24 hours | 7.87 inch | NO | 1 |
|
HLD-100+ | Corona | NO | 2 C | ≥ 24 hours | 13.98 inch | NO | 2 |
|
HLD-200 | Corona | NO | 2 AA | ≥ 24 hours | 12.01 inch | NO | 2 |
|
LD-200 | Heated Diode | YES | Li-1800mA/h | ≥ 500 hours | 14.37 inch | YES | 1 |
|
ILD-200 | Infrared | YES | Li-3000mA/h | ≥ 10 years | 14.37 inch | YES | 1 |
