Elitech DMG-3 HVAC Manifold Gauge Set 2 Way with Hoses Coupler & Carrying Case

Elitech DMG-3 HVAC Manifold Gauge Set is mainly used for air exhaust and compression in refrigeration and maintenance operation, refrigerant charging of air-conditioning systems. It can display pressure in real-time with a bigger screen.

Key Feature:

• Professional Design: 2-Way Air conditioning diagnostic manifold gauge set for R134A R12 R22 and R410A refrigerants. Designed for AC charging, diagnostic check and recovery work.
• Easy to use: Double pressure test, dual temperature test, digital readout, multi-unit switching, multi-mode function and built-in refrigerant database.
• High Accuracy: High-quality dual-table valve with imported pressure sensor,excellent workmanship, stable performance, Large screen, display data clearly.
• Long battery life: Powered by 3AAA batteries, up to work about 6 months.
• Wide Application: The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners,fridge and cold storage.
• Service :1-year warranty. 30 days free & easy return

Specification:

• Pressure Measuring Range: -14.5-500psi/-14.5-800psi
• Operating Temperature and Humidity: -10~60℃; 35%~85%RH
• Resolution pressure: 0.5psi; temperature: ±1.8℉(±1℃)
• Accuracy pressure: ±0.5%FS (71.6℉~82.4℉/22℃~28℃); temperature: ±1.8℉(±1℃)
• Battery Life: six months
• Power Supply: 3 AAA batteries per gauge
• Sampling Period: 1s
• Battery Indicator: display "LOB" at low battery

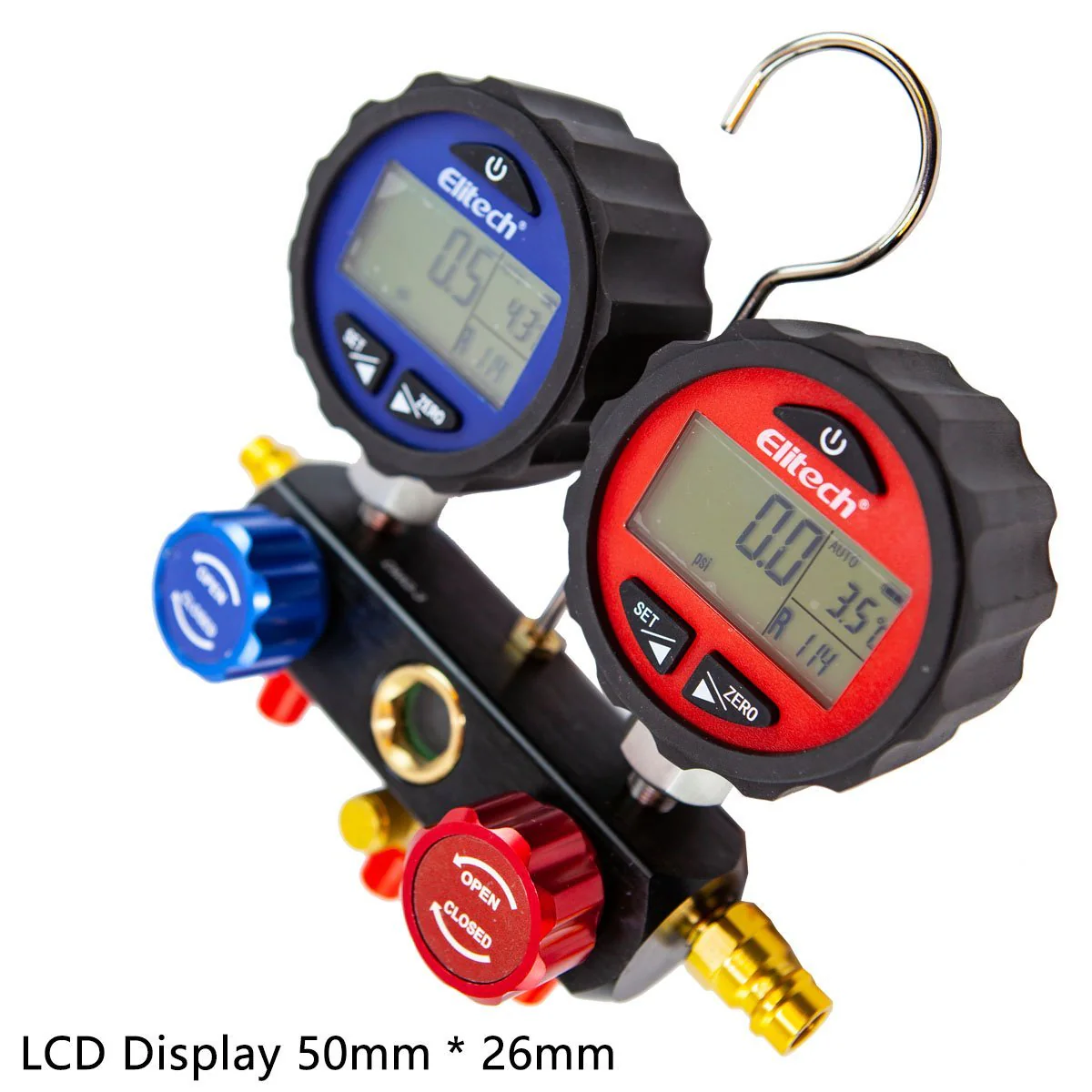

• Display:1.9 *1 (in) LCD/blue back-light
• Settable Measurement Units: MPa,kPa,bar,psi,kg/cm2,cmHg
• Temperature Unit: ℉/ ℃
• Over Range Alarm: Displays -OL-

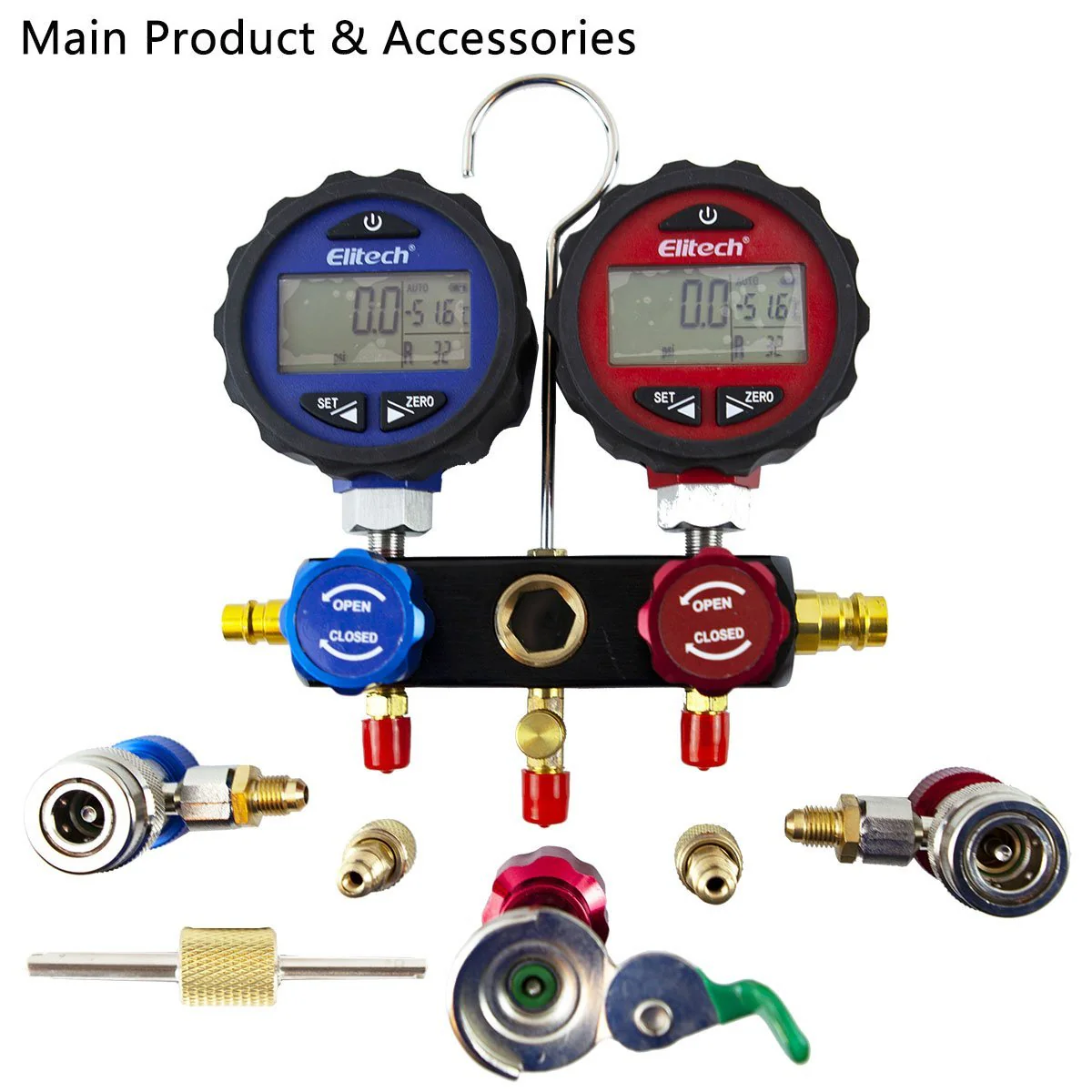

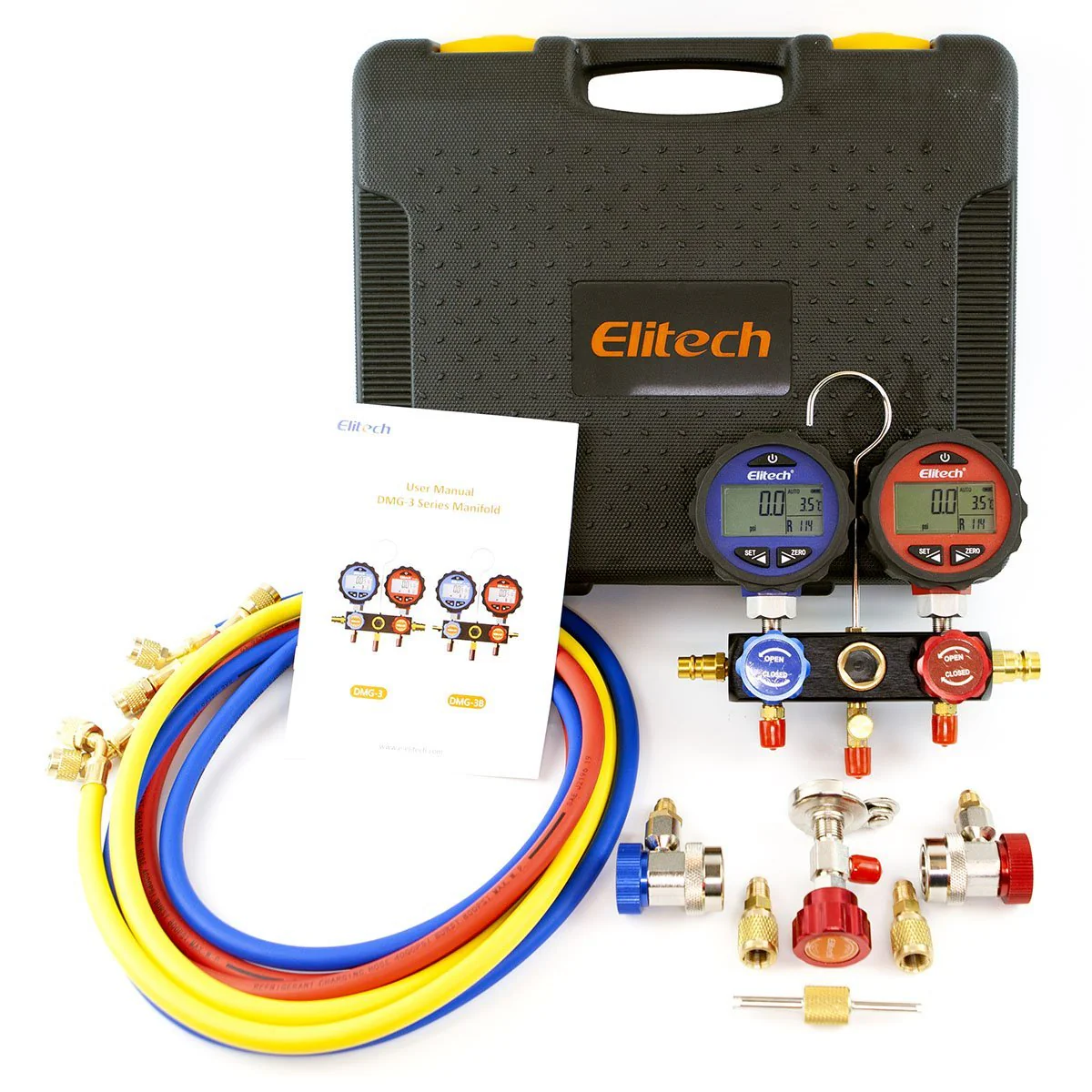

Package includes:

2 x Pressure Gauge (PG-30Pro)

• 2-Way: red, blue
• Refrigerant Type: R134A, R22, R410A, etc.
• Max Working Pressure: 800psi
• Low side: blue
• High side: red

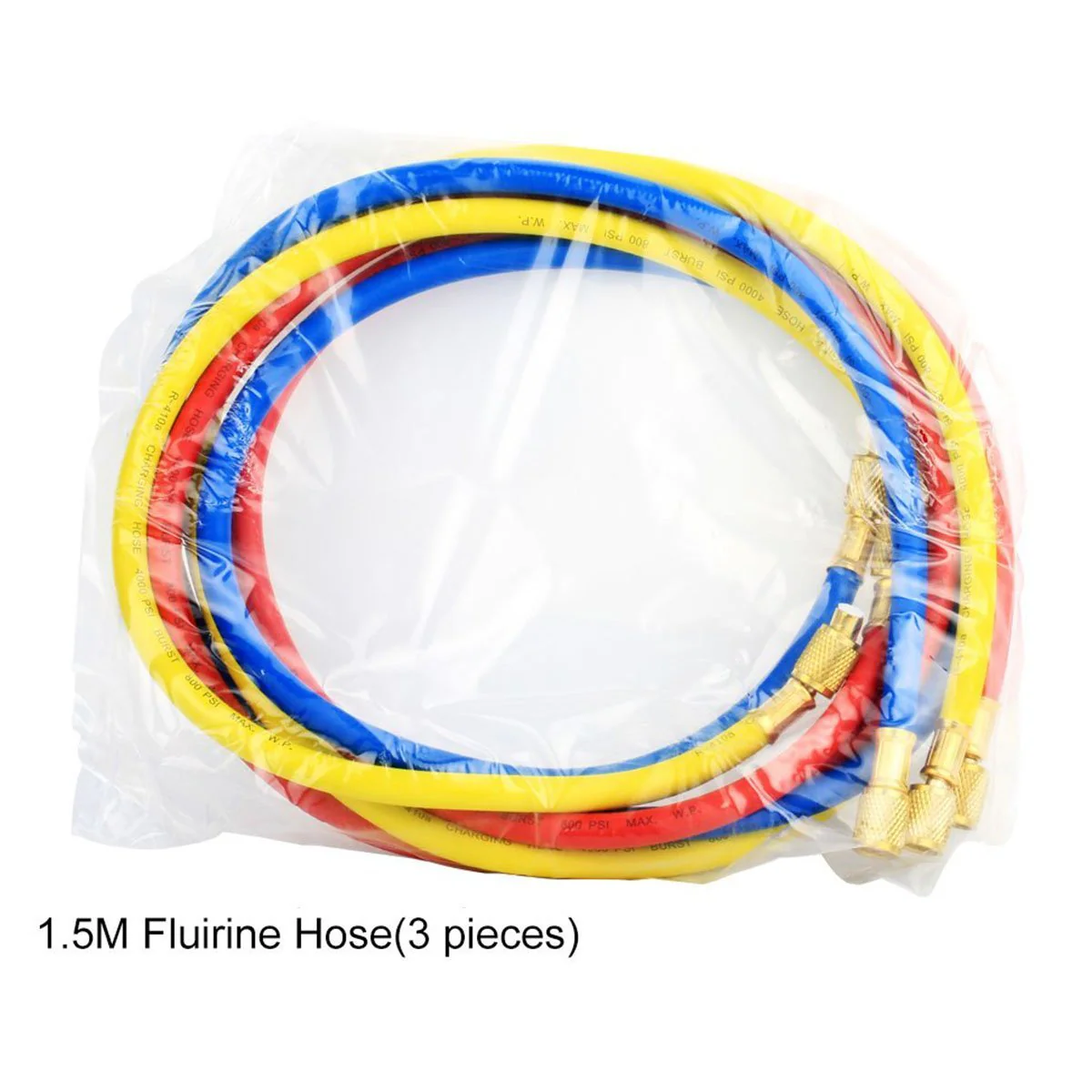

3 x Fluorine Hose (4.1 feet)

• Red Hose: high pressure
• Blue Hose: low pressure
• Yellow Hose: refrigerant
• (800 PSI working pressure and 4000 PSI burst pressure )

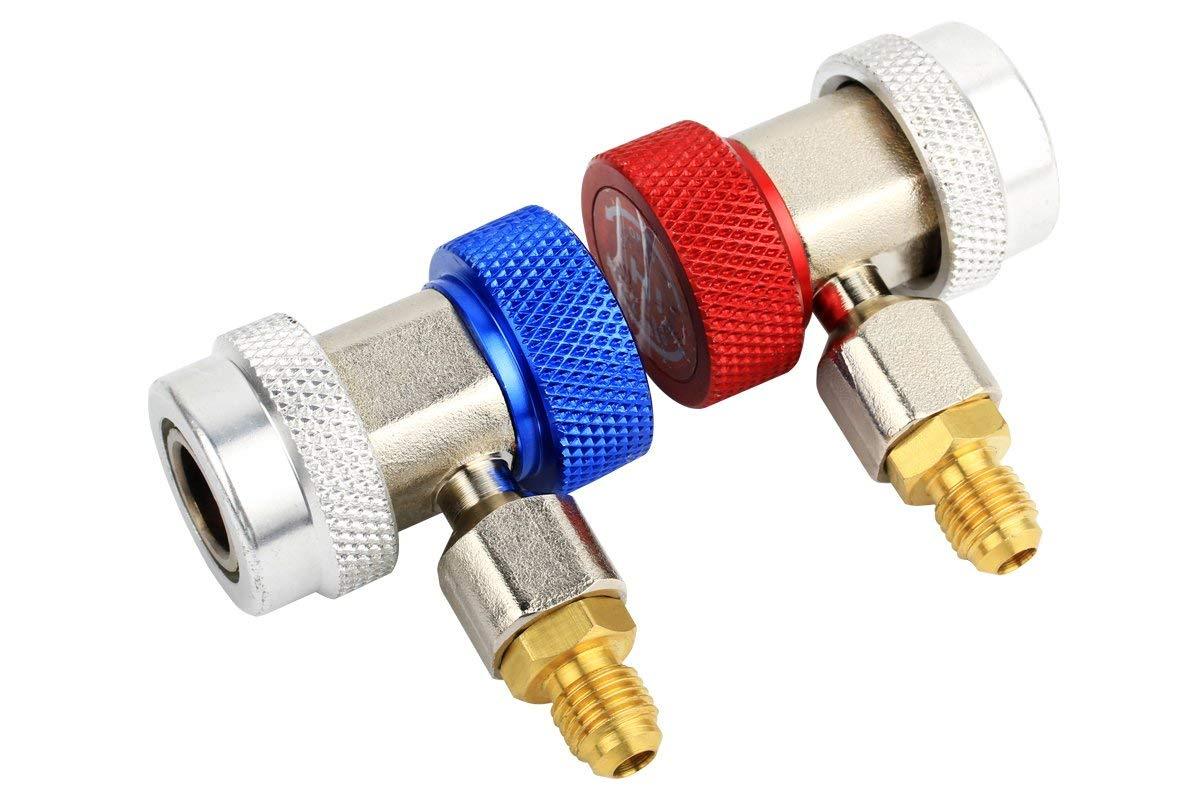

2 x Couplers

• Blue: Low side quick connector/adapter
• Red: High side quick connector/adapter
• Fits A/C manifold gauge sets (R-134A), coupler interface fits with R134A service ports, 1/4" male flare.

Other Accessories

• 1 x dual-purpose valve wrench
• 1 x corkscrew
• 2 x R410A adapter
• 1 x hook
• 1 x User Manual (DOWNLOAD)

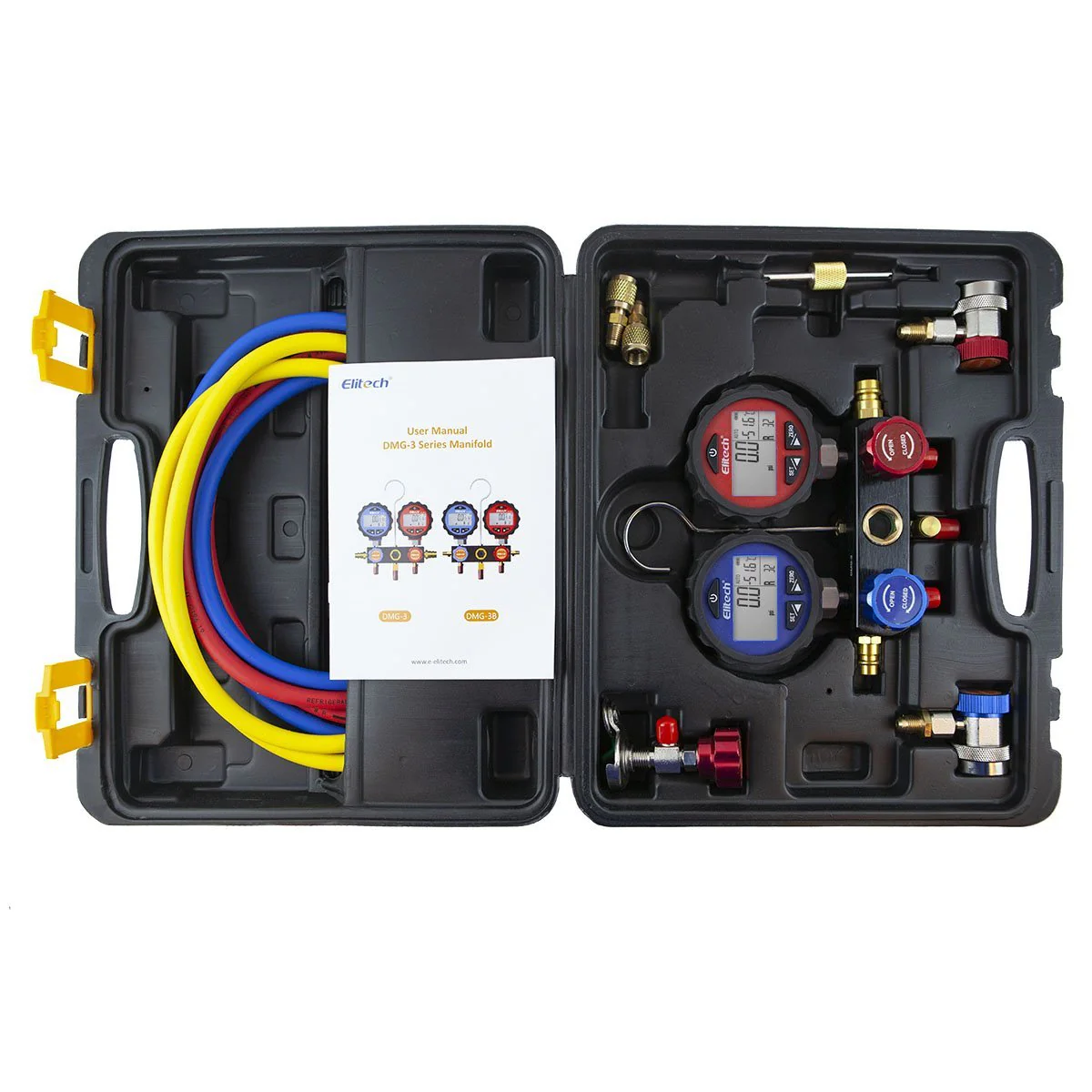

• 1 x Blow-molded Case

Compatible Refrigerants:



Comparison Chart:

		Pressure Measuring Range	Accuracy	Resolution	Fitting	Measurement Units	Battery	Refrigerant Types	Wireless App	Super-heat and sub-cool	Temperature Clip
	PG-30 Low Pressure	-14.5-500psi	±0.5%FS(22-28℃)	0.5psi	1/8'' NPT	MPa,kPa,bar,psi,kg/m²,cmHg	CR2450	91	N/A	N/A	N/A
	PG-30Pro Red	-14.5-800psi	±0.5%FS(22-28℃)	0.5psi	1/8'' NPT	MPa,kPa,bar,psi,kg/m²,cmHg	3*1.5V AAA	87	N/A	N/A	N/A
	PT-500&PT-800	-14.5-500/800psi	±0.5%FS(22-28℃)	0.5psi	1/8'' NPT	psi, inHg,kg/cm²,cmHg,bar,kPa,Mpa	6*1.5V AA	140	✓	✓	✓
	DMG-1	-14.5-500/800psi	±0.5%FS(22-28℃)	0.5psi	1/4'' SAE	MPa,kPa,bar,psi,kg/m²,cmHg	CR2450	91	N/A	N/A	N/A
	DMG-3B	-14.5-500/800psi	±0.5%FS(22-28℃)	0.5psi	1/4'' SAE	MPa,kPa,bar,psi,kg/m²,cmHg	3*1.5V AAA	87	N/A	N/A	N/A
	DMG-3	-14.5-500/800psi	±0.5%FS(22-28℃)	0.5psi	1/4'' SAE	MPa,kPa,bar,psi,kg/m²,cmHg	3*1.5V AAA	87	N/A	N/A	N/A
