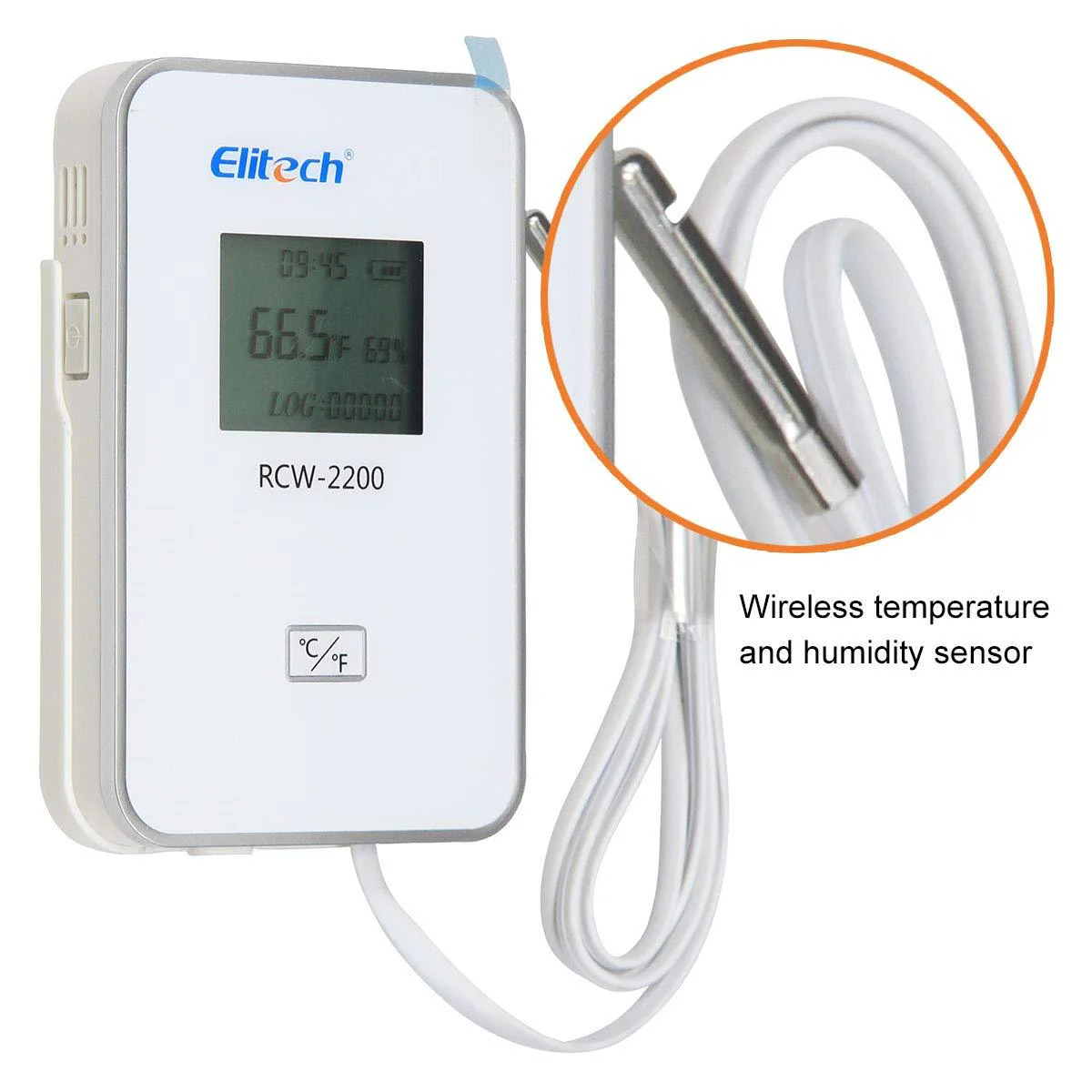

Elitech RCW-2200 Wireless Temperature and Humidity Monitor System (Work with RCW-2000WIFI)

• Wireless deployment, no need for wiring, easy to install
• Wi-Fi communication, data transmission at 1000m unobstructed line of sight
• Long standby time, no less than 12-month continuous use at 10 minutes uploading interval.
• Data be viewed in real time through a browser or an intelligent terminal
• Top to 33 or 55 data logger supported optional
• 1-year warranty.

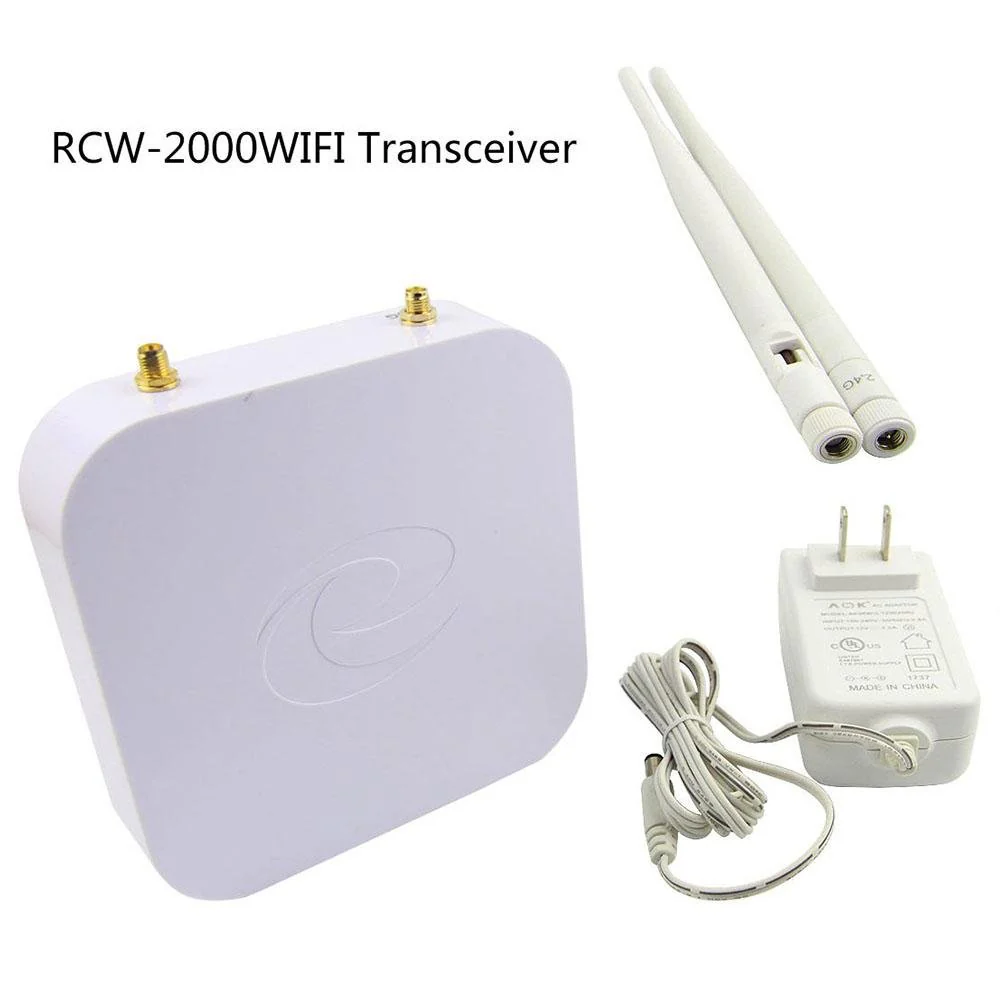

RCW2000

• Automatically search and connect the strongest wireless repeater signals under 300m open site conditions and accept connections from nearby wireless sensors, 33 or 55 sensors optional.
• Max. data transmission distance of 1,000 meters in open space.
• Audible and visual alarm for abnormal status of devices, network, and power supply.
• Data read by connected sensors can be viewed on Elitech Cloud and app.
• Long standby time, no less than 12-month continuous use at 10 minutes uploading interval.

Technical Parameters:

• The transceiver can communicate with 33 data loggers at less than 5 minutes uploading interval or 55 data loggers at more than 5 minutes uploading interval.

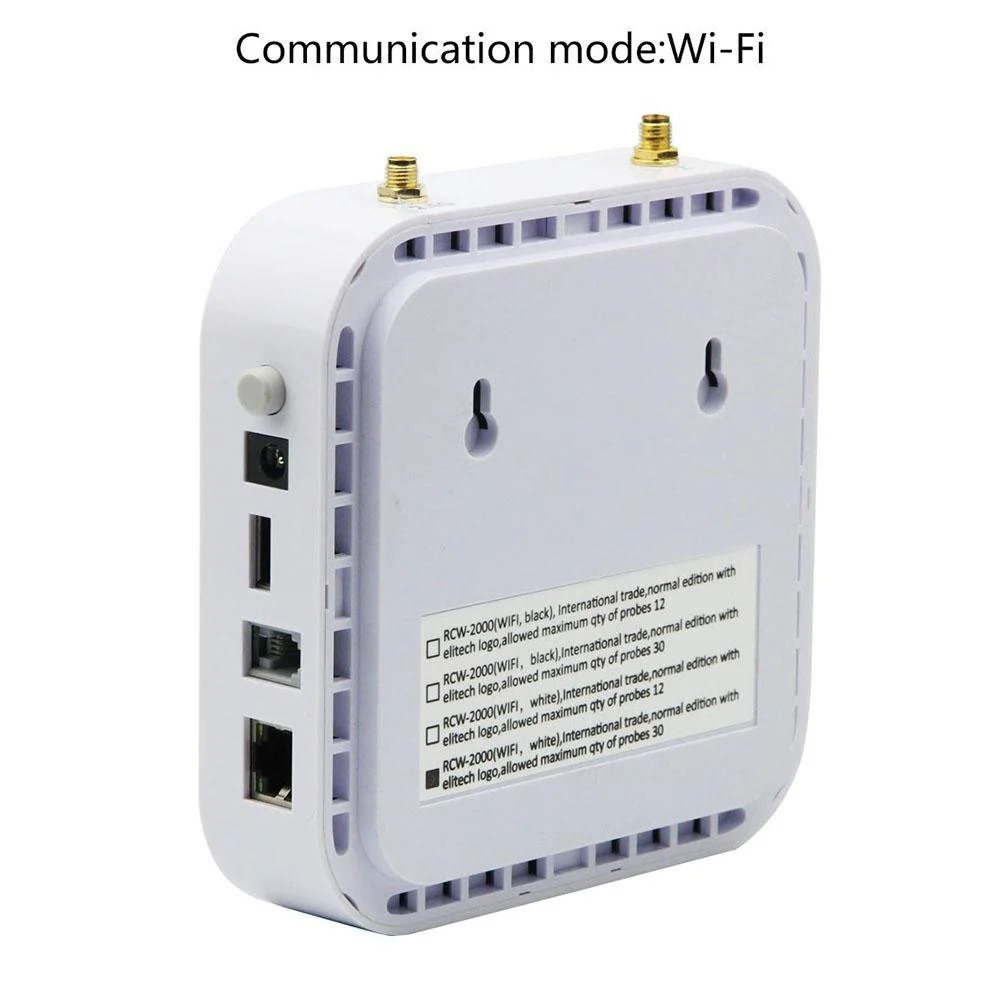

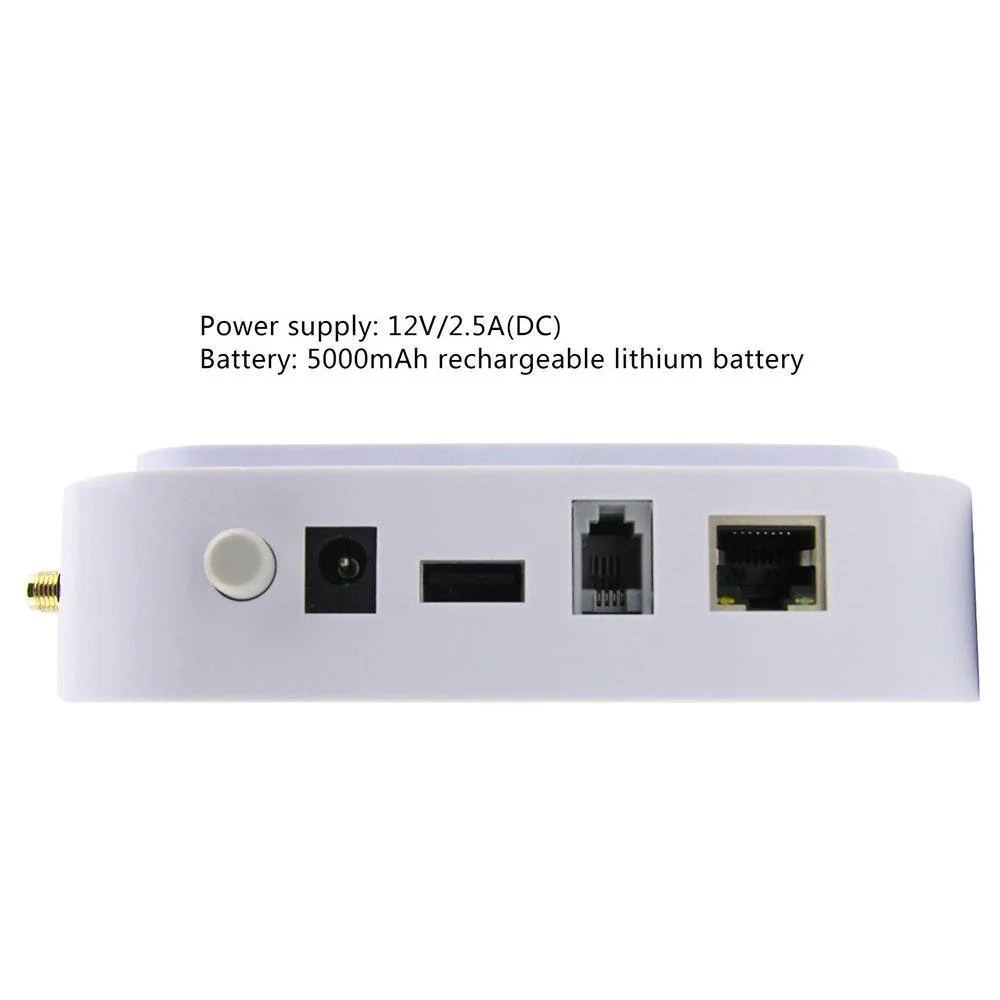

• Power supply: 12V/2.5A(DC) Communication mode: Wi-Fi
• Alarm mode: LCD indicator, buzzer, SMS (sent by the Cloud), mobile APP
• Battery: 5000 mAh rechargeable lithium battery, 12 hours of continuous use
• Measurement range: temperature: -30℃~65℃/-22℉~117℉; Humidity: 10~100%RH
• Accuracy: temperature: 0.5℃; humidity:5%RH
• Log interval: 1min~24hr; Uploading mode: LoRa Memory capacity: 20, 000 readings
• Protection grade: IP65 ; Operating frequency: 470~510 MHz ISM

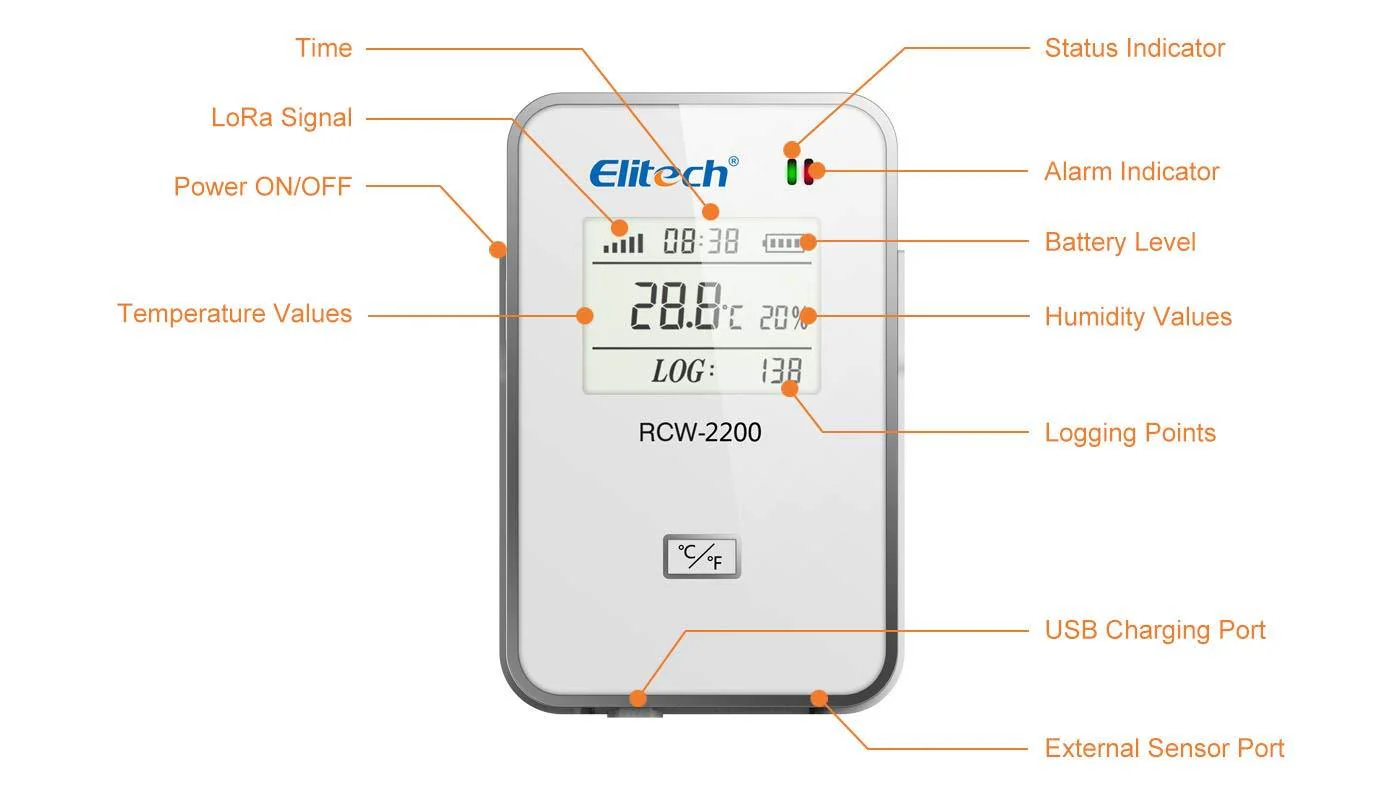

Indicator Light

• Power indicator(Power): ON: Green LED is always on; OFF: The indicator is off.Network indicator (Net): Wi-Fi version: It is always on after Wi-Fi is connected.

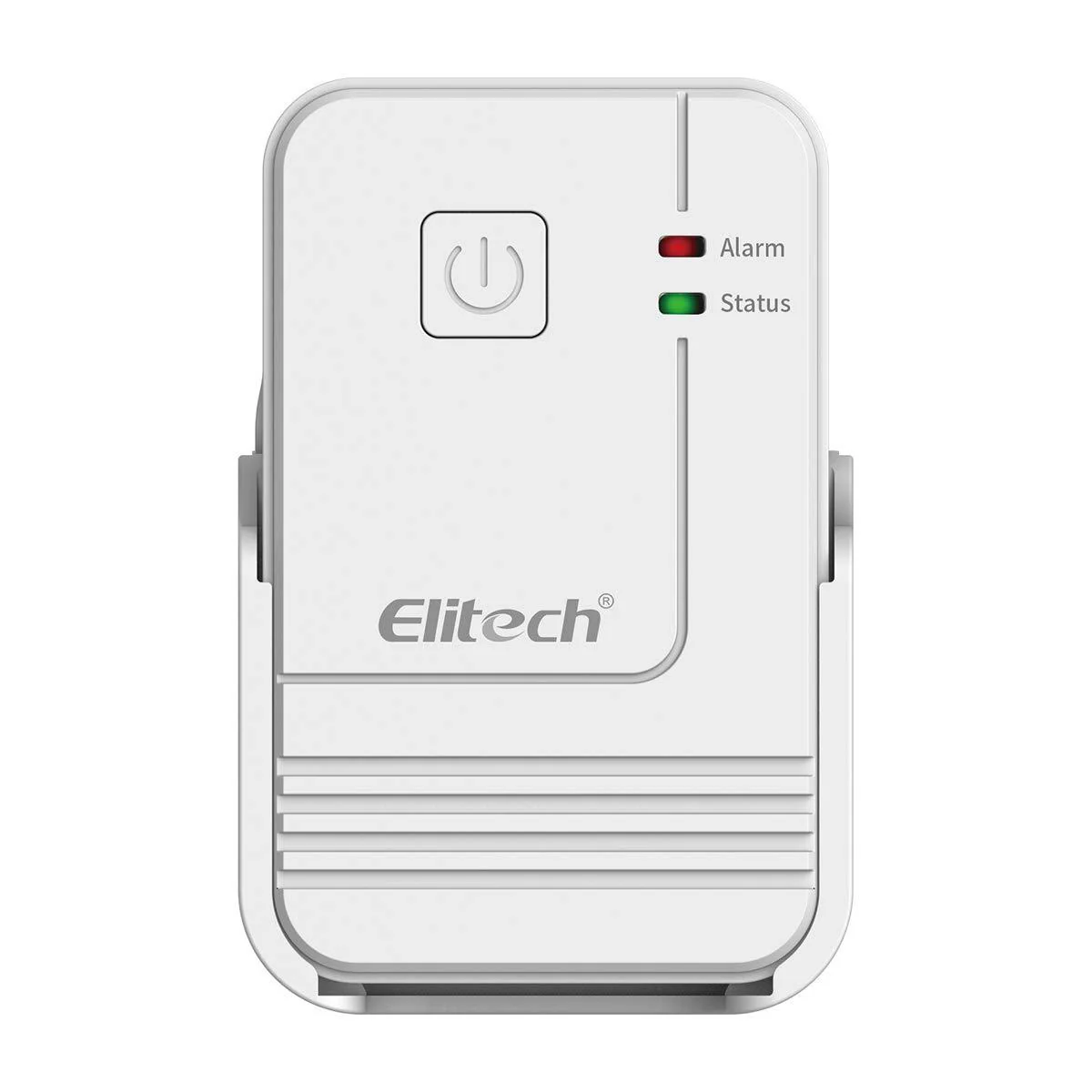

• Status indicator (Status): Green LED blinks once every one second to indicate it is in normal status. It blinks quickly continuously to indicate data is uploaded.
